Roxtec CF16 Kits
Flexible sealing system for cables & wires. CF 16 Frame Series.
The Roxtec CF 16 is a low-profile metal entry seal frame. Compression is integrated in the frame.
Adapter plates available for standardised openings in cabinets.
- For use with Group CM components.
- Bolt on attachment.
Pass connectorized cables through the cabinet with out cutting or splicing
All CF 16 models are UL / CSA listed for NEMA 4, 4X, 12 & 13; Also rated IP 66/67
Roxtec CF16 Spec Sheet
| Pos | (mm) | (in) |
|---|---|---|
| c | 17 | 0.315 |
| e | 20 | 0.787 |
| f | 42 | 3.150 |
| g | 175 | 3.937 |
| h1 | 160 | 3.622 |
| w1 | 40 | 1.260 |
| t1 |
wall thickness max 4 |
1.575 |
| r | SW TX25 | SW TX25 |
Download CF16 Holecut Template
Order Online
Roxtec CF 16/10
$120.53

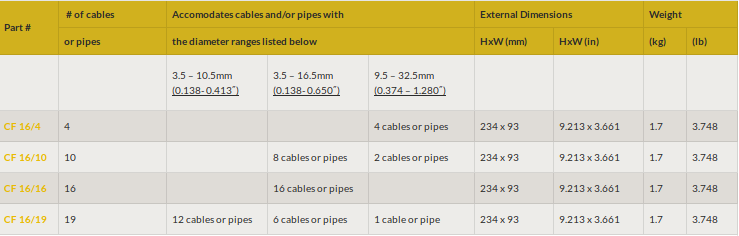

Roxtec CF16/10 rectangular cable seal; accommodates up to 10 cables; UL / CSA listed for NEMA 4, 4X, 12 &
Roxtec CF 16/16
$123.17
Roxtec CF16/16 rectangular cable seal; accommodates up to 16 cables w/ a diameter range from 0.138″
Roxtec CF 16/19
$146.82
Roxtec CF16/19 rectangular cable seal; accommodates up to 19 cables; UL / CSA listed for NEMA 4, 4X, 12 &
Roxtec CF 16/4
$117.24
Roxtec CF16/4 rectangular cable seal; accommodates up to 4 cables w/ a diameter range from 0.374″
