RGM Kits
Roxtec Cable Glands RG M63 Series

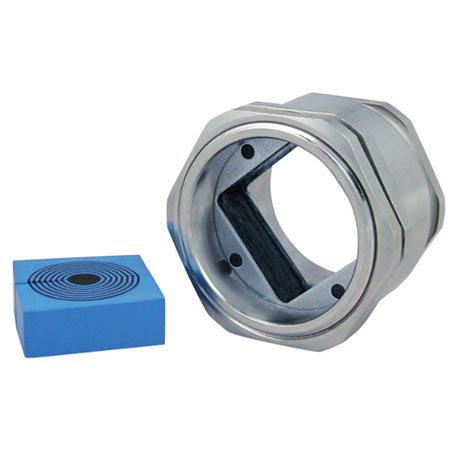

The Roxtec RG M63 is a compact kit sealing solution for cabinets. The three different standardised kit configurations make it possible to seal one to nine pre terminated cables, ranging from ⌀3.5mm to ⌀32.5mm. The Roxtec RG M63 housing is made of nickel plated brass. The seal is UL/NEMA 4,4X,12,13 and IP 66/67 rated. The Roxtec RG M63 AISI 316L is made of stainless steel, acid proof material. The seal is rated IP 66/67.
RG M63 Seals

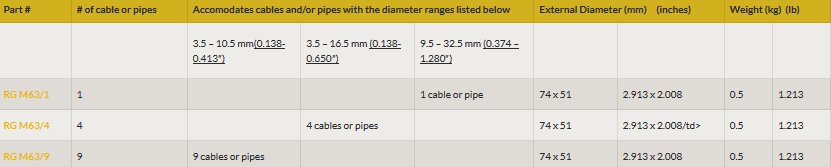

The Roxtec RG M63 cable gland series include models that accommodate up nine cables or pipes
- Attachment by counter ring nut
- Standard models listed below are nickel plated brass, stainless options are available
- Allows use of connectorized cables w/ out cutting or splicing All RG M63 models listed below are UL / CSA listed for NEMA 4, 4X, 12 & 13; Also rated for IP 66/67
Roxtec RGM63 Spec Sheet
Roxtec RGM63 Installation Instructions
Roxtec RGM63 Overview Video
Order Online
Roxtec RG M63 Wrenches
$36.54
Roxtec 64 & 68 mm wrenches for simple assembly of RG M63 series cable glands Art. No. 5IRG000001545
Roxtec RG M63/1
$58.65
RGM63/1 Roxtec circular cable seal; accommodates 1 cable w/ diameter range from 0.374″ to 1.280″; UL /
Roxtec RG M63/4
$58.65
RGM63/4 Roxtec circular cable seal; accommodates up to 4 cables with a diameter range 0.138″ to 0.650″; UL / CSA listed for NEMA 4, 4X, 12 & 13; Rated IP 66/67 Art. No. RG00063040046
Roxtec RG M63/9
$58.65
RGM63/9 Roxtec circular cable seal; accommodates up to 9 cables w/ a diameter range from 0.138″ to 0.414″; UL / CSA listed for NEMA 4, 4X, 12 & 13; Rated IP 66/67 Art. No. RG00063090046
