Roxtec CM Modules


Sealing modules for use with Roxtec frames. Provide Multidiameter™ Technology with removable layers for perfect adaptation to a cable or a pipe.

  • For use with Group CM components
  • Adaptable Multidiameter™ modules for cables and pipes 3.5-32.5mm (0.138”-1.280”) OD

pdf icon

Roxtec CM Modules data sheet

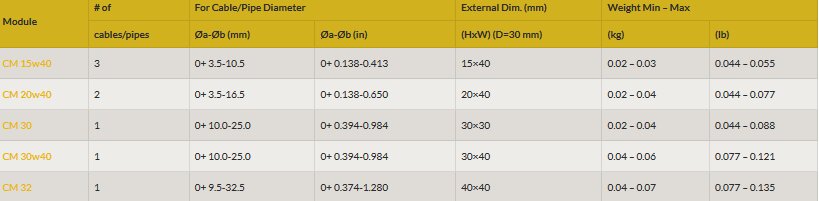

cm modules table

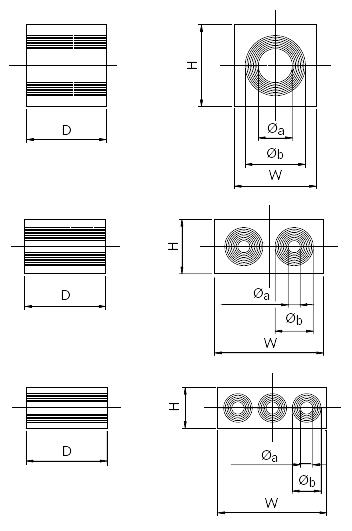

Pos
Øa Min. cable/pipe diameter
Øb Max. cable/pipe diameter
D 30mm 1.181″
Note: All dimensions are nominal values

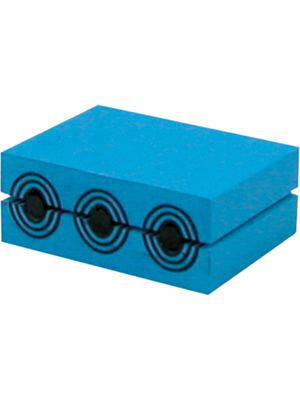

Smart tip: Whenever possible Roxtec recommends choosing twin or triplet modules like CM 15w40 or CM 20w40. Benefits are higher area efficiency per frame opening, quicker installation & improved cost effectiveness.
cm table specs

Order Online


CM 20

$4.08

For cable/pipe Ø (mm) 4 – 14.5 External dimensions WxHxD (mm) 20 x 20 x 30 Weight (kg) 0.018 Art.

CM 20

$4.08

For cable/pipe Ø (mm) 21.5 – 34.5 External dimensions WxHxD (mm) 40 x 40 x 30 Weight (kg) 0.071 Art.

CM 10w40/0

$2.64

Roxtec compensation module Art. No. C000310401000

CM 10w40/0

$11.97

Roxtec multidiameter replacement modules Art. No. C000115401000 Availability: normally in stock

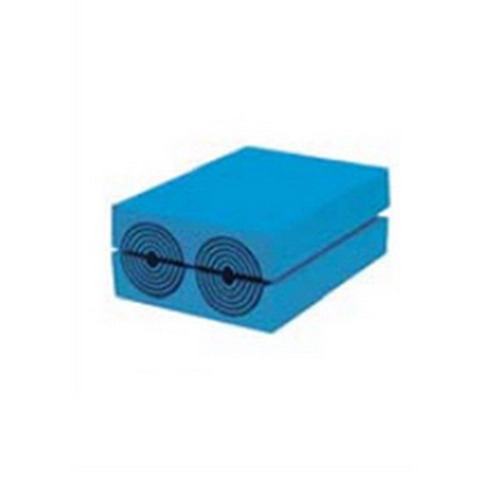

CM 20w40

$7.85

Roxtec multidiameter replacement modules [ CM20W40 ] Art. No. C000120401000

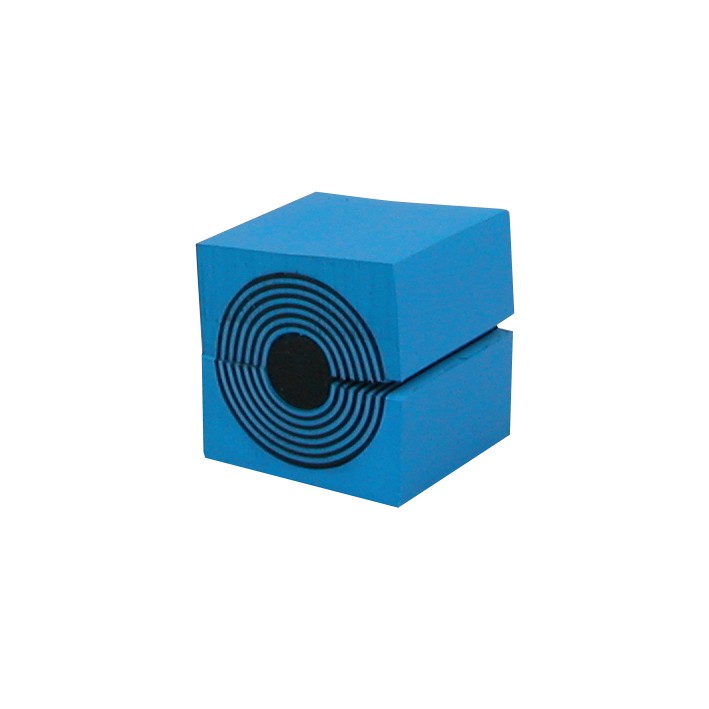

CM 30

$6.46

Roxtec multidiameter replacement modules Art. No. C000100301000

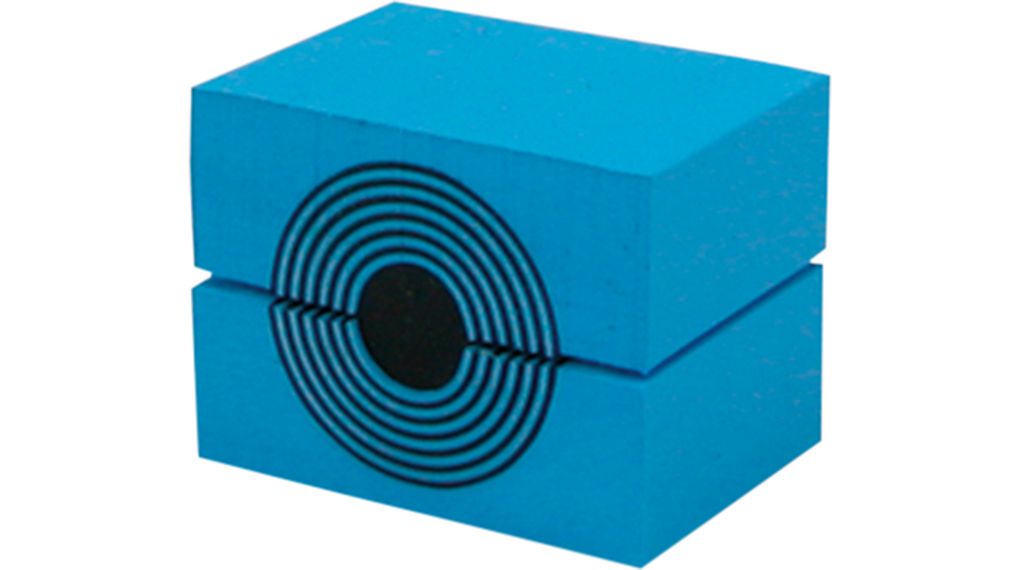

CM 30w40

$8.62

Roxtec multidiameter replacement modules [ CM30W40 ] Art/ No. C000130401000

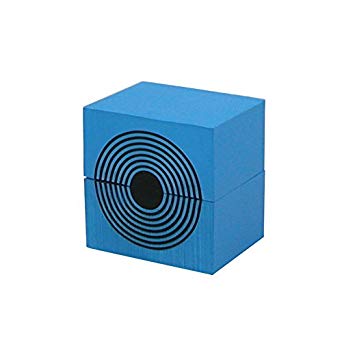

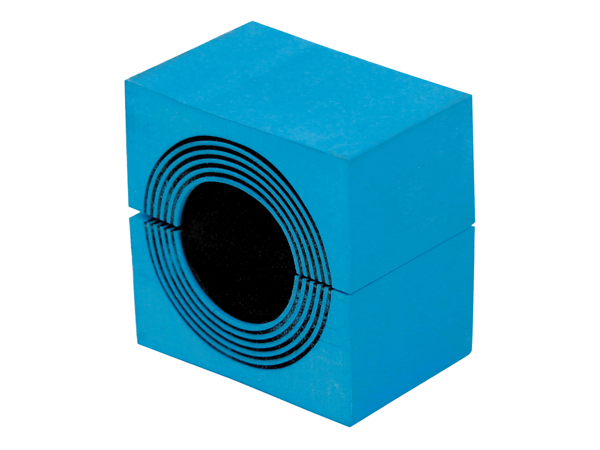

CM 40 10-32

$14.12

Roxtec multidiameter replacement modules Art. No. C000140101000

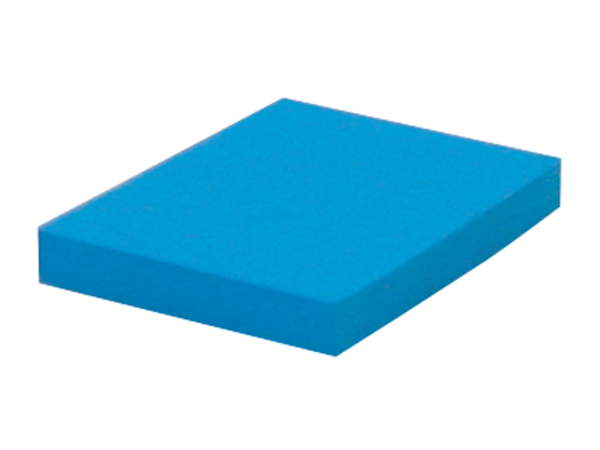

CM 5w40/0

$2.16

Roxtec compensation module Art. No. C000305401000
