CF 8 & 32 Frames
The Roxtec CF 8 and CF 32 entry seals are made from cast aluminum. Compression unit is integrated in the frame. Adapter plates available for standardized openings in cabinets.
- For use with Group CM components
- Attachment by bolting
All CF 8 & CF 32 models are UL / CSA listed for NEMA 4, 4X, 12 & 13; IP 66/67;

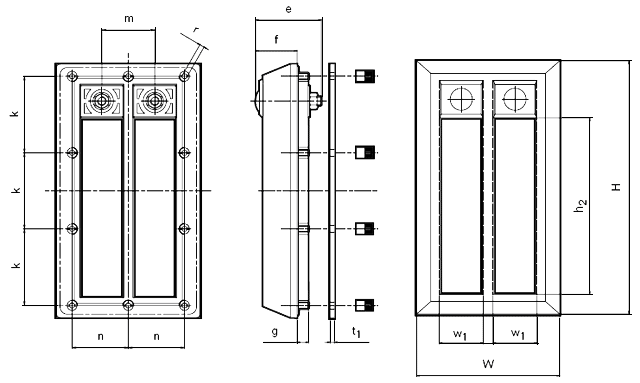

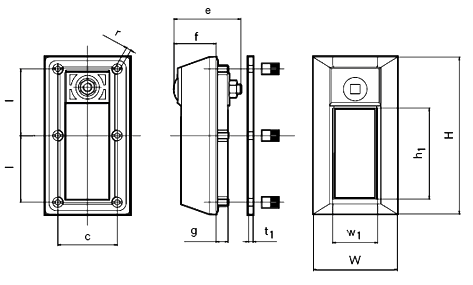

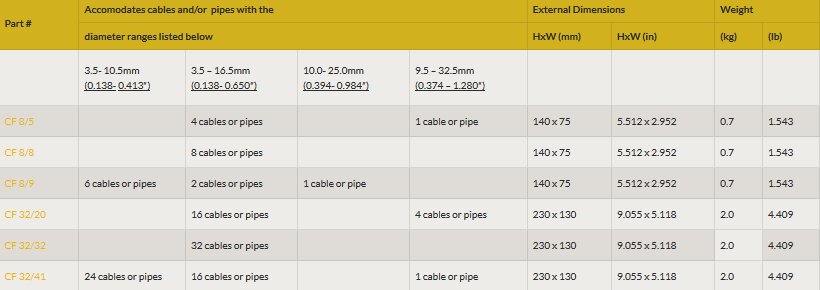

Roxtec CF8 & 32 spec sheet
| Pos | (mm) | (in) |
|---|---|---|
| c | 53 | 2.087 |
| e | 59 | 2.323 |
| f | 38 | 1.496 |
| g | 12 | 0.472 |
| I | 60 | 2.362 |
| k | 70 | 2.756 |
| m | 48 | 1.890 |
| n | 51 | 2.008 |
| r | SW 4 | SW 0.157 |
| t1 | 4 | 0.157 |
| h1 | 80 | 3.150 |
| h2 | 160 | 6.299 |
| w1 | 40 | 1.575 |
Order Online

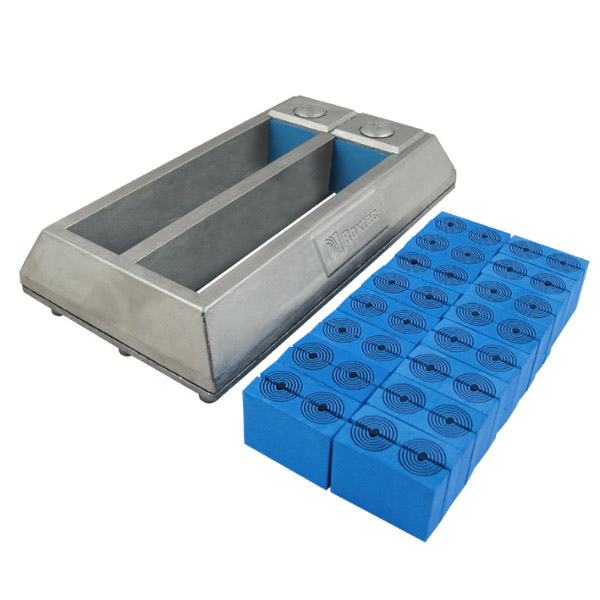

Roxtec CF 32/20
$317.84
Roxtec CF32/20 rectangular cable seal; accommodates up to 20 cables; UL / CSA listed for NEMA 4, 4X, 12 &
Roxtec CF 32/32
$322.95
Roxtec CF32/32 rectangular cable seal; accommodates up to 32 cables; UL / CSA listed for NEMA 4, 4X, 12 & 13; rated IP 66/67 Art. No. CKT3200000032
Roxtec CF 32/41
$371.70
Roxtec CF32/41 rectangular cable seal; accommodates up to 41 cables; UL / CSA listed for NEMA 4, 4X, 12 &13; rated IP 66/67 Art. No. CKT3200000041

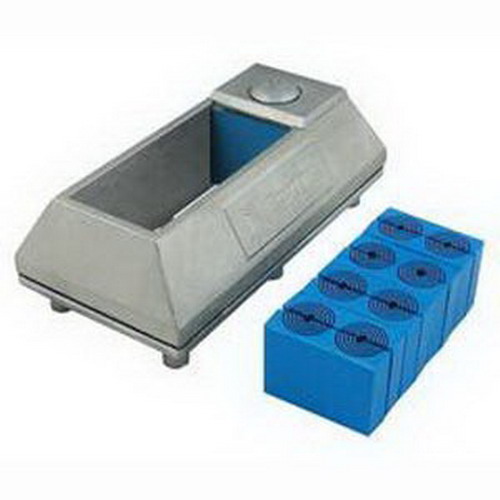

Roxtec CF 8/5
$151.26
Roxtec CF8/5 rectangular cable seal; accommodates up to 5 cables; UL / CSA listed for NEMA 4, 4X, 12 & 13; rated IP 66/67 Art. No. CKT8000000005
Roxtec CF 8/8
$152.54
Roxtec CF8/8 rectangular cable seal; accommodates up to 8 cables w/ a diameter range from 0.138″
Roxtec CF 8/9
$161.46
Roxtec CF8/9 rectangular cable seal; accommodates up to 9 cables; UL / CSA listed for NEMA 4, 4X, 12 &
