CF24 Kits
CF 24 Frame Series

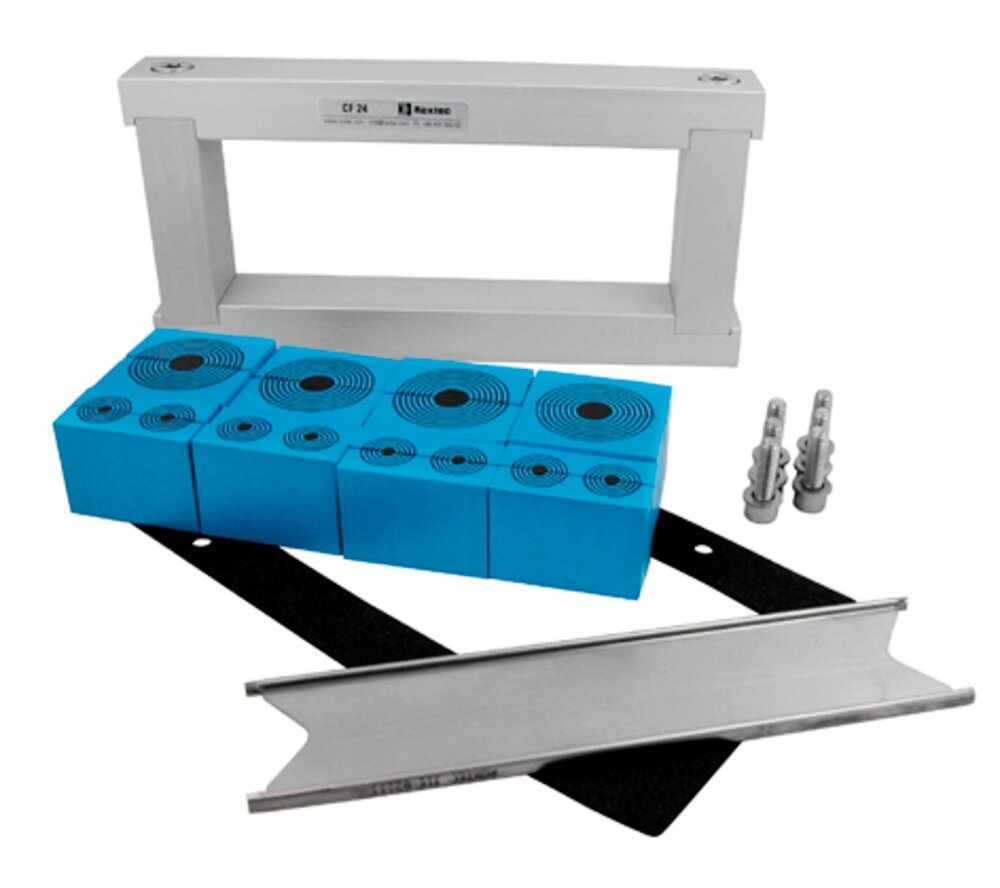

The Roxtec CF 24 is a bolted together frame made from aluminum. Compression is integrated in the frame.
Frame also installs easily around existing cables.
Bolt on attachment

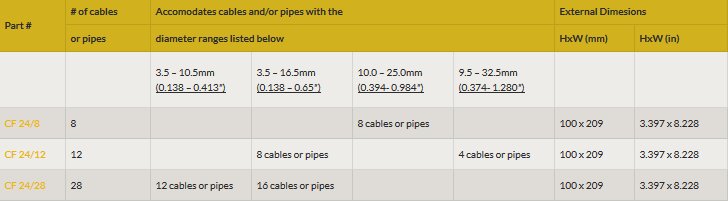

Roxtec CF 24 Data Sheet
| Kit | (kg) | (lb) |
|---|---|---|
| CF 24/8 | 1.5 | 3.307 |
| CF 24/12 | 1.5 | 3.307 |
| CF 24/28 | 1.5 | 3.307 |

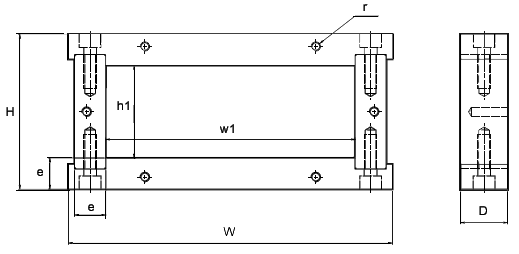

| Pos | (mm) | (in) |
| e | 20 | 0.787 |
| h1 | 60 | 2.362 |
| w1 | 160 | 6.299 |
| r | M6 | M6 |
| D | 30 | 1.181 |
| Note: All dimensions are nominal values |
Order Online
Roxtec CF 24/12
$220.41
Roxtec rectangular cable seal, accommodates up to 12 cables, rated IP 66/67 Art. No. CF00000241235
Roxtec CF 24/28
$259.54
Roxtec rectangular cable seal, accommodates up to 28 cables Art. No. CF00000242835
Roxtec CF 24/8
$201.47
Roxtec rectangular cable seal, accommodates up to 8 cables Art. No. CF00000240035
